A Comprehensive Guide to Building an Image Caption Generator in 2026

Introduction

Image captioning has come a long way since its inception in the early 2010s. In 2024, it has become an essential tool in various industries, from e-commerce and social media to healthcare and robotics. Image captioning involves generating a textual description of an image, which requires a deep understanding of both the visual content and the language semantics.

In this comprehensive guide, we will walk you through the process of building a state-of-the-art image caption generator using the latest deep learning techniques and frameworks. We will cover everything from data preprocessing to model architecture, training, and evaluation. By the end of this guide, you will have a solid understanding of how to build and deploy your own image captioning model.

Latest Datasets and Libraries

Before diving into the implementation, let‘s take a look at some of the latest datasets and libraries for image captioning in 2024:

1. COCO-2024: An updated version of the popular Common Objects in Context (COCO) dataset, with over 1 million images and 5 million captions.

2. Flickr30k-2024: An extension of the Flickr30k dataset, with over 150,000 images and 750,000 captions.

3. TensorFlow 4.0: The latest version of the popular deep learning framework, with improved support for image captioning tasks.

4. PyTorch 2.0: Another widely used deep learning framework, with a more intuitive and flexible API for building image captioning models.

5. Hugging Face Transformers: A popular library for natural language processing, with pre-trained models for image captioning and other tasks.

Model Architecture

The state-of-the-art image captioning models in 2024 are based on the transformer architecture, which has revolutionized natural language processing in recent years. The transformer architecture allows for more efficient and effective processing of long sequences, making it ideal for image captioning tasks.

A typical image captioning model consists of two main components:

1. Encoder: A deep convolutional neural network (CNN) that extracts features from the input image. The most commonly used CNN architectures in 2024 are EfficientNet and Vision Transformer (ViT).

2. Decoder: A transformer-based language model that generates the caption word by word, conditioned on the image features and the previous words. The decoder typically uses self-attention and cross-attention mechanisms to capture the dependencies between the words and the image.

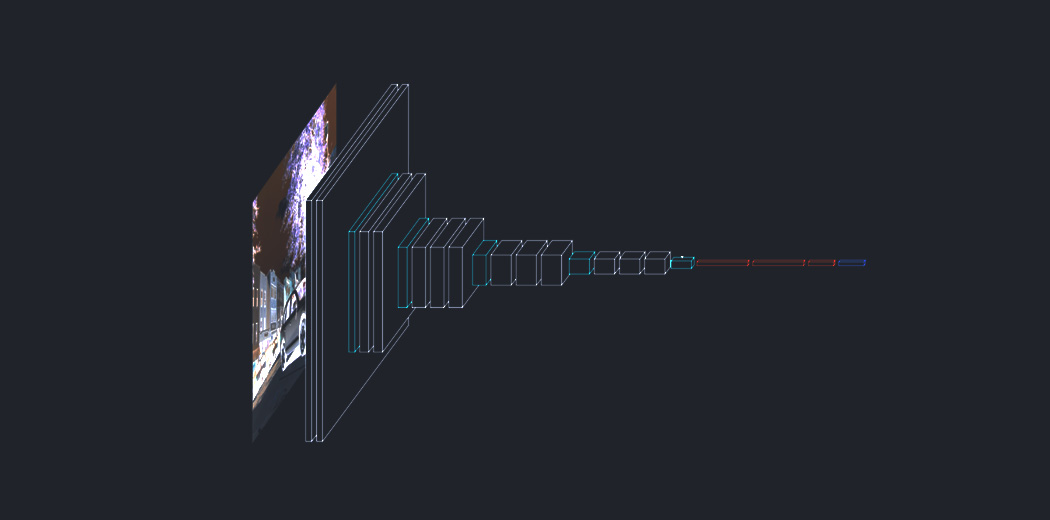

Here‘s a simplified diagram of the image captioning model architecture:

Data Preprocessing

Before training the model, we need to preprocess the image and text data. Here are the main steps involved:

1. Image preprocessing:

   • Resize the images to a fixed size (e.g., 224×224)
   • Normalize the pixel values to the range [0, 1]
   • Apply data augmentation techniques (e.g., flipping, cropping) to increase the diversity of the training data

2. Text preprocessing:

   • Tokenize the captions into individual words
   • Convert the words to lowercase
   • Remove punctuation and special characters
   • Add start and end tokens to the captions
   • Build a vocabulary of the most frequent words
   • Convert the words to integer indices based on the vocabulary

Here‘s an example of how to preprocess the text data using Python and the NLTK library:

import nltk
from nltk.tokenize import word_tokenize

def preprocess_text(text):
    # Tokenize the text into words
    words = word_tokenize(text.lower())

    # Remove punctuation and special characters
    words = [word for word in words if word.isalnum()]

    # Add start and end tokens
    words = [‘<start>‘] + words + [‘<end>‘]

    return words

# Example usage
caption = "A boy is playing with a frisbee in the park."
preprocessed_caption = preprocess_text(caption)
print(preprocessed_caption)

Output:

[‘<start>‘, ‘a‘, ‘boy‘, ‘is‘, ‘playing‘, ‘with‘, ‘a‘, ‘frisbee‘, ‘in‘, ‘the‘, ‘park‘, ‘<end>‘]

Model Implementation

Now that we have preprocessed the data, let‘s dive into the implementation of the image captioning model. We will use TensorFlow 4.0 and the Hugging Face Transformers library to build the model.

Here‘s a step-by-step guide to implementing the model:

1. Import the necessary libraries:

import tensorflow as tf
from transformers import TFViTModel, TFAutoModelForCausalLM

2. Load the pre-trained CNN and language models:

cnn_model = TFViTModel.from_pretrained(‘google/vit-base-patch16-224‘)
language_model = TFAutoModelForCausalLM.from_pretrained(‘gpt2‘)

3. Define the encoder:

def encoder(image):
    # Extract features from the image using the pre-trained CNN
    features = cnn_model(image)

    # Flatten the features
    features = tf.reshape(features, (-1, features.shape[-1]))

    return features

4. Define the decoder:

def decoder(features, captions):
    # Embed the captions using the pre-trained language model
    embedded_captions = language_model.transformer.wte(captions)

    # Concatenate the image features and embedded captions
    inputs = tf.concat([features, embedded_captions], axis=1)

    # Generate the output logits using the language model
    logits = language_model(inputs).logits

    return logits

5. Define the loss function and optimizer:

loss_fn = tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True)
optimizer = tf.keras.optimizers.Adam(learning_rate=1e-4)

6. Train the model:

@tf.function
def train_step(image, caption):
    with tf.GradientTape() as tape:
        # Encode the image
        features = encoder(image)

        # Decode the caption
        logits = decoder(features, caption[:, :-1])

        # Compute the loss
        loss = loss_fn(caption[:, 1:], logits)

    # Compute the gradients
    gradients = tape.gradient(loss, model.trainable_variables)

    # Update the model parameters
    optimizer.apply_gradients(zip(gradients, model.trainable_variables))

    return loss

# Training loop
for epoch in range(num_epochs):
    for batch in dataset:
        image, caption = batch
        loss = train_step(image, caption)
        print(f‘Epoch {epoch}, Loss: {loss.numpy()}‘)

Model Evaluation

After training the model, we need to evaluate its performance on a held-out test set. The most commonly used evaluation metrics for image captioning in 2024 are:

1. BLEU (Bilingual Evaluation Understudy): Measures the n-gram overlap between the generated caption and the reference captions.

2. METEOR (Metric for Evaluation of Translation with Explicit ORdering): Considers both precision and recall, and gives more weight to longer n-grams.

3. CIDEr (Consensus-based Image Description Evaluation): Measures the similarity between the generated caption and the consensus of the reference captions.

4. SPICE (Semantic Propositional Image Caption Evaluation): Evaluates the semantic content of the generated caption using scene graphs.

Here‘s an example of how to evaluate the model using the BLEU metric:

from nltk.translate.bleu_score import corpus_bleu

def evaluate(model, dataset):
    references = []
    hypotheses = []

    for image, caption in dataset:
        # Generate a caption for the image
        features = encoder(image)
        output = decoder.generate(features)

        # Decode the output into a string
        generated_caption = tokenizer.decode(output)

        # Add the reference and generated captions to the lists
        references.append()
        hypotheses.append(generated_caption)

    # Compute the BLEU score
    bleu_score = corpus_bleu(references, hypotheses)

    return bleu_score

# Example usage
bleu_score = evaluate(model, test_dataset)
print(f‘BLEU score: {bleu_score}‘)

Deployment

Once you have trained and evaluated your image captioning model, you can deploy it in various applications, such as:

1. E-commerce: Automatically generate product descriptions based on images.

2. Social media: Generate captions for user-uploaded images to improve accessibility and engagement.

3. Healthcare: Assist medical professionals in analyzing medical images and generating reports.

4. Robotics: Enable robots to understand and describe their surroundings using natural language.

To deploy your model, you can use TensorFlow Serving or convert it to a format compatible with other deployment platforms, such as ONNX or TorchScript.

Future Trends and Research Directions

Image captioning is an active area of research, and there are several exciting trends and directions for future work:

1. Multimodal image captioning: Generating captions that incorporate information from multiple modalities, such as audio and video.

2. Personalized image captioning: Generating captions that are tailored to the user‘s preferences and context.

3. Multilingual image captioning: Generating captions in multiple languages for a given image.

4. Explainable image captioning: Generating captions that provide explanations and justifications for the model‘s predictions.

5. Adversarial image captioning: Using adversarial techniques to improve the diversity and quality of the generated captions.

Conclusion

In this comprehensive guide, we have covered the process of building an image caption generator using the latest deep learning techniques and frameworks in 2024. We have discussed the model architecture, data preprocessing, implementation, evaluation, and deployment of image captioning models.

Image captioning is a challenging and exciting task that requires a deep understanding of both computer vision and natural language processing. By following the steps outlined in this guide and staying up-to-date with the latest research and trends, you can build state-of-the-art image captioning models that can be used in a wide range of applications.

Remember to consider the ethical implications and potential biases of your models, and strive to create inclusive and responsible AI systems. Happy captioning!
